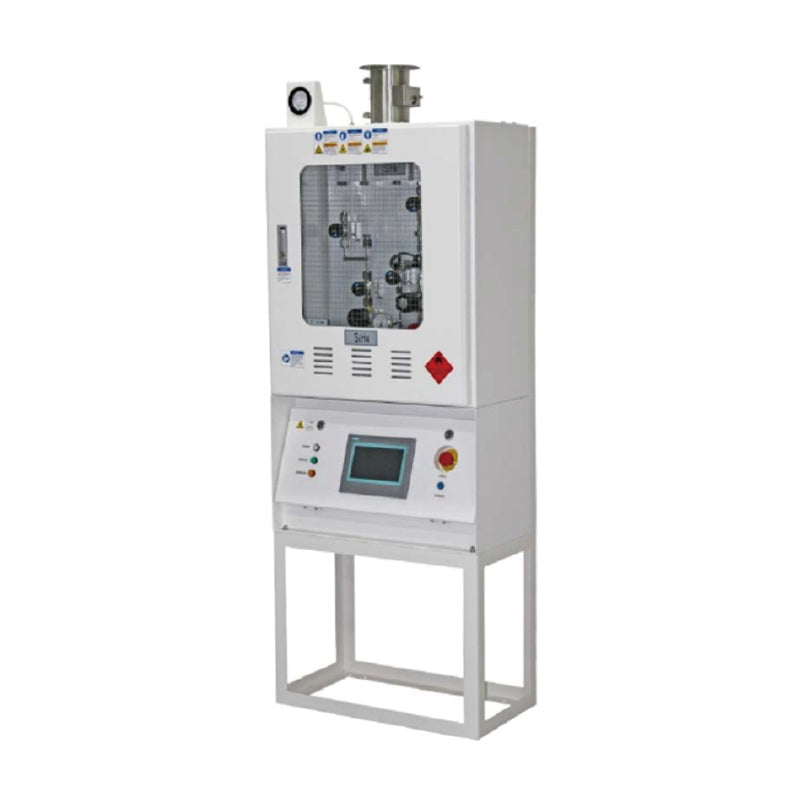

Fully automatic gas distribution cabinet
$0.00
customers are viewing this product
Safely distribute hazardous process gases
◆ Automatic blowing function
◆ Includes full load design
◆ Ergonomic color touch screen
◆ Intuitive operating interface and control
Continuously monitor the system status to issue alerts
Detailed alarm log, helium leak test reaches 1x10-9 atm-cm3/sec
Features
- Multiple communication protocols available
- Branch status indicator lights
- Rail-mounted design for easy maintenance and expansion
- 4, 6 and 8-channel enclosures available
- Multiple branch designs available
Engineering Data
- 4-Channel Dimensions: 44"H (Height) × 22"W (Width) × 15"D (Depth)
- Exhaust Duct: 4" Diameter
- Voltage: 220 VAC
- Frequency: 50 Hz
Engineering Materials
- Q235B Welded Steel Cabinet
- Self-closing and Self-locking Door
- UL-certified Fire Sprinkler
- 1/4" Thick Safety Wired Glass Window
- Integrated wall-mounted or rack-mounted installation connection points
- Ultra-high purity fluid components
Safety Performance
- Double containment piping for toxic and hazardous gas applications (optional)
- Door switch monitor, suitable for applications requiring enhanced safety or restricted access (optional)
- UV/IR detectors for pyrophoric gas applications, including silane and silane mixtures
- Temperature detectors for flammable gas applications (optional)
- Gas leak detector for all hazardous, toxic or flammable gas applications
- Purge gas vent valve (optional)
- Emergency switchover valve (optional)
Ordering Information
SNB 2-A 4 E
Product
SNB = Valve Distribution Box
Configuration
4 = 4-way manifold panel (1-4 sticks)
6 = 6-way manifold panel (1-6 sticks)
8 = 8-way manifold panel (1-8 sticks)
Control
M = Manual
S = Semi-automatic
A = Fully Automatic
Number of Sticks (Branches)
0 = 0 Sticks
1 = 1 Stick
2 = 2 Sticks
3 = 3 Sticks
4 = 4 Sticks
5 = 5 Sticks
6 = 6 Sticks
7 = 7 Sticks
8 = 8 Sticks
Accessories
E = With (Included)
O = Without (Not included)
