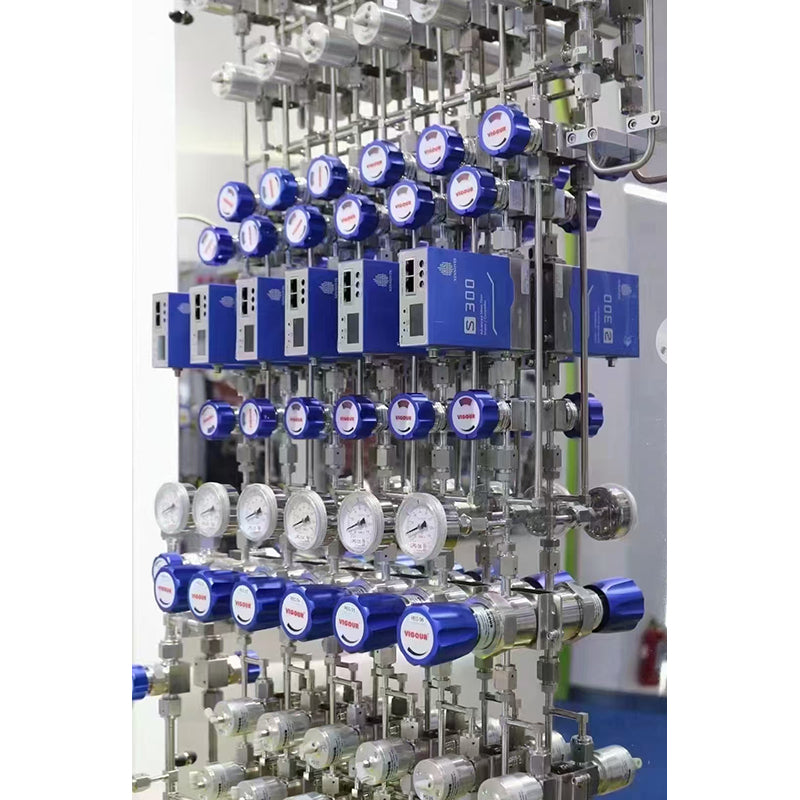

Fully automatic gas distribution plate
$0.00
customers are viewing this product
◆ Safely distribute hazardous process gases
◆ Automatic blowing function
◆ Ergonomic color touch screen
◆ Intuitive operating interface and control
Continuously monitor the system status to issue alerts
Detailed alarm logs
Multiple communication protocols are available, with helium leak testing reaching 1x10-9 atm-cm3/sec
Features
- Multiple communication protocols available
- Branch status indicator lights
- Rail-mounted design for easy maintenance and expansion
- 4, 6 and 8-channel enclosures available
- Multiple branch designs available
Engineering Data
- 4-Channel Dimensions: 44"H (Height) × 22"W (Width) × 15"D (Depth)
- Voltage: 220 VAC
- Frequency: 50 Hz
Engineering Materials
- Integrated wall-mounted or rack-mounted installation connection points
- Ultra-high purity fluid components
Model Code: SNP 2-A 4 E
Product
SNP = Valve Distribution Panel
Configuration
4 = 4-way manifold panel (1-4 sticks)
6 = 6-way manifold panel (1-6 sticks)
8 = 8-way manifold panel (1-8 sticks)
Control
M = Manual
S = Semi-automatic
A = Fully Automatic
Number of Sticks (Branches)
0 = 0 Sticks
1 = 1 Stick
2 = 2 Sticks
3 = 3 Sticks
4 = 4 Sticks
5 = 5 Sticks
6 = 6 Sticks
7 = 7 Sticks
8 = 8 Sticks
Accessories
E = With (Included)
O = Without (Not Included)
