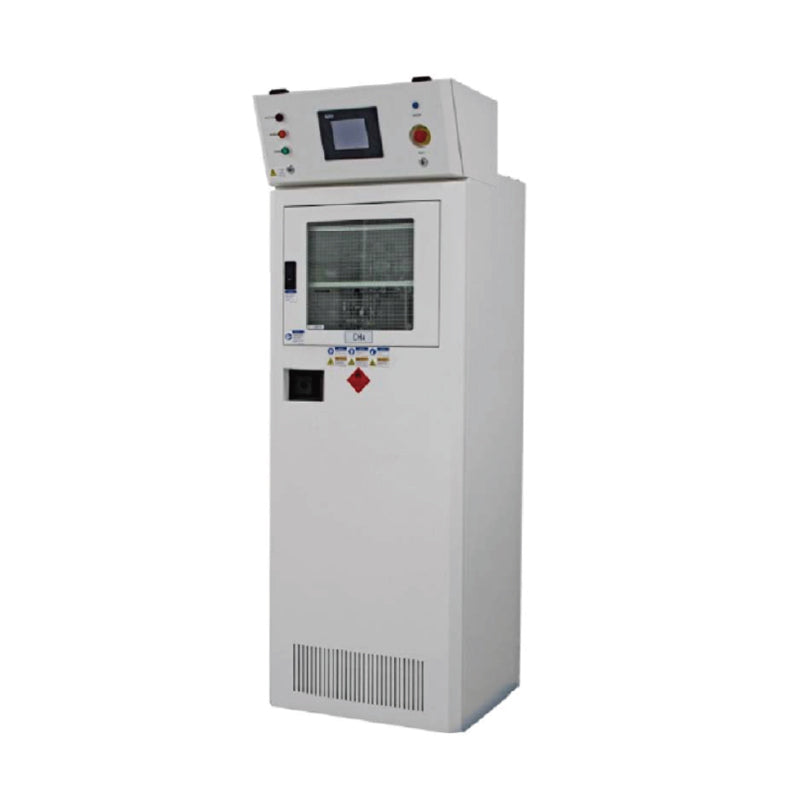

Safely allocate hazardous process gases with automatic blowing function, automatic switching function of gas cylinders, and ergonomic color touch screen. Intuitive operating interface and control. Continuously monitor the system status to issue alerts, with detailed alarm logs. Multiple communication protocols are available, with helium leak testing reaching 1x10-9 atm-cm3/sec

Engineering Data

• Dimensions: 86"T (Height) × 25"W (Width) × 23"D (Depth)
• Exhaust Duct: 6" Diameter
• Sash Duct Flow Rate: 350 SCFM (Standard Cubic Feet per Minute)
• Voltage: 220 VAC (Volts Alternating Current)
• Frequency: 50 Hz

Engineering Materials

• Q235B Welded Steel Cabinet
• Self-closing and Self-locking Door
• Self-closing and Self-locking Viewing Window
• Heavy-duty Gas Cylinder Bracket
• Durable, Corrosion-resistant, Anti-slip Floor Mat
• UL-certified Fire Sprinkler
• 1/4" Thick Safety Wired Glass Window

Safety Performance

• Double Containment Piping for Toxic and Hazardous Gas Applications (Optional)
• Door Switch Monitor, Suitable for Applications Requiring Enhanced Safety or Restricted Access (Optional)
• UV/IR Detectors for Pyrophoric Gas Applications, Including Silane and Silane Mixtures
• Temperature Detectors for Flammable Gas Applications (Optional)

• Gas Leak Detector for all hazardous, toxic or flammable gas applications
• Purge gas vent valve (optional)
• Cylinder securing device, suitable for applications requiring enhanced cylinder safety or located in seismic zones
• Automatic cylinder connection lock, to prevent accidental disconnection of hazardous cylinders from piping (optional)
• Cylinder emergency shut-off valve (optional)
