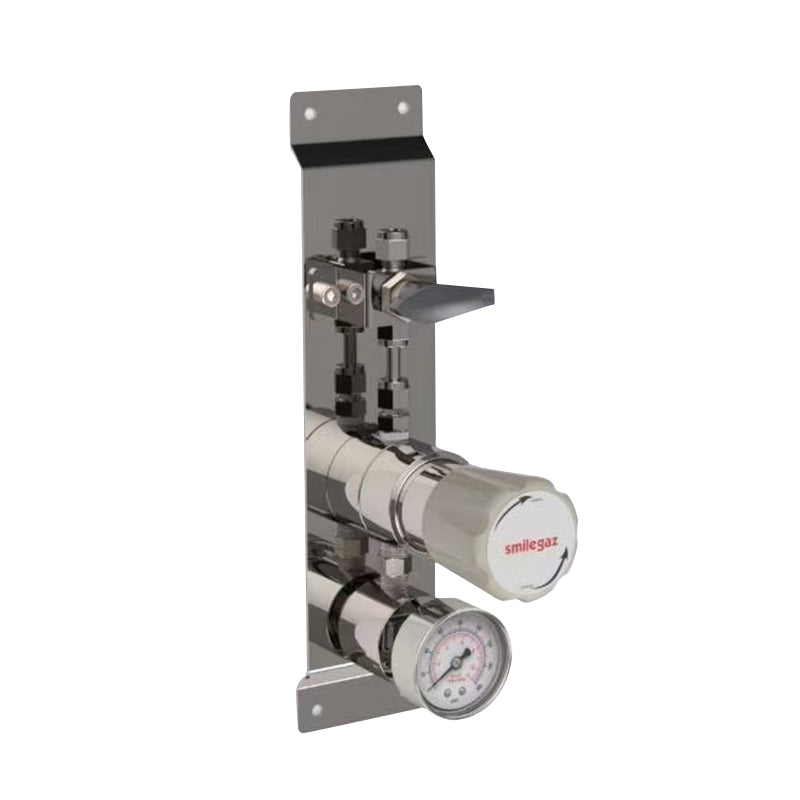

Stainless steel terminal control panel
$0.00
customers are viewing this product
Made of 316L material, the diaphragm is made of alloy material, the plate design is compact, easy to install, and the operation is intuitive
| Product Series | Body Material | Inlet Pressure | Outlet Pressure | Inlet Pressure Gauge | Outlet Pressure Gauge | Inlet Connection Type | Outlet Connection Type | Options |
|---|---|---|---|---|---|---|---|---|
| SE310 | S: 316L | 02: 60 bar | 07: 2 bar | 00: No pressure gauge | 00: No pressure gauge | 00: 1/4" NPT (F) | 00: 1/4" NPT (F) | A: Straight Handle Ball Valve |
| SE360 | C: Electroplated Brass | 03: 200 bar | 08: 4 bar | 01: bar/psi | 01: bar/psi | 02: 1/8" Compression Fitting | 02: 1/8" Compression Fitting | B: Butterfly Handle Ball Valve |
| B: Brass | 09: 10 bar | 02: MPa | 02: MPa | 04: 1/4" Compression Fitting | 04: 1/4" Compression Fitting | D: Diaphragm Valve | ||
| 10: 20 bar | 06: 3/8" Compression Fitting | CV: Check Valve | ||||||
| 11: 50 bar | 08: 1/2" Compression Fitting | N: Needle Valve | ||||||
| 12: 100 bar |
